Setup

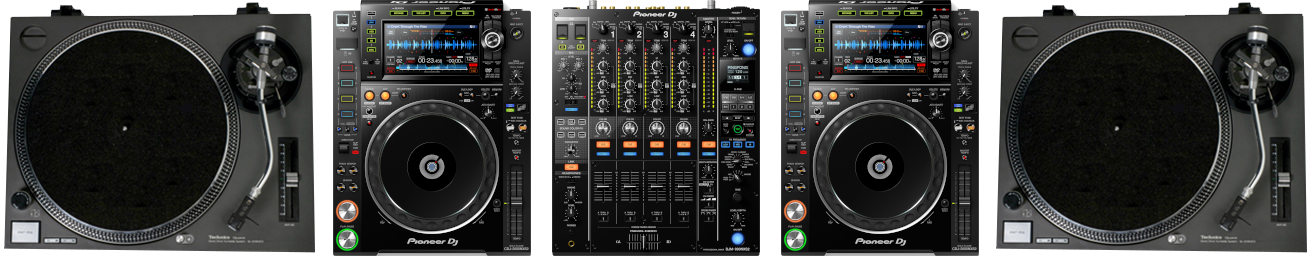

REVEAL has the following default setup. It is allowed to change the order, but all has to be placed in the original order after use.
| Audio | Type | Number |
|---|---|---|
| DJ mixer | Pioneer DJM-900NXS2 | 1 |
| CDJ | Pioneer CDJ-2000NXS2 | 2 |
| turntable | Technics SL-1210MK2 | 2 |
| monitor | Genelec 8040B | 2 |
| microphone | Behringer ULTRAVOICE XM8500 | 2 |
| sound card | Focusrite Saffire PRO 24 | 2 |
The DJ mixer supports headphones with either a 3.5 mm or 2.5 mm audio jack. The CDJs are connected to each other via a link cable and to the mixer via a digital cable.

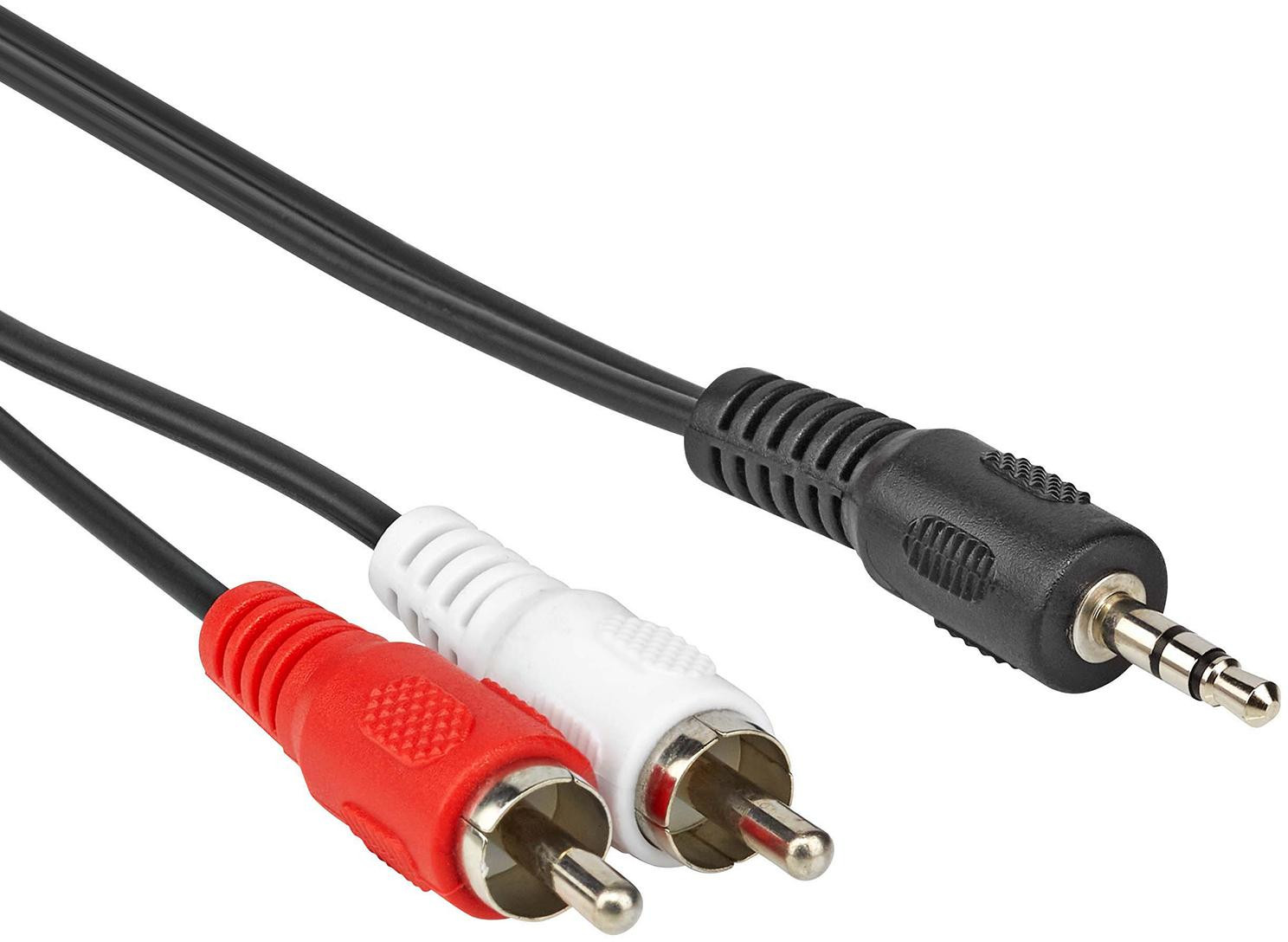

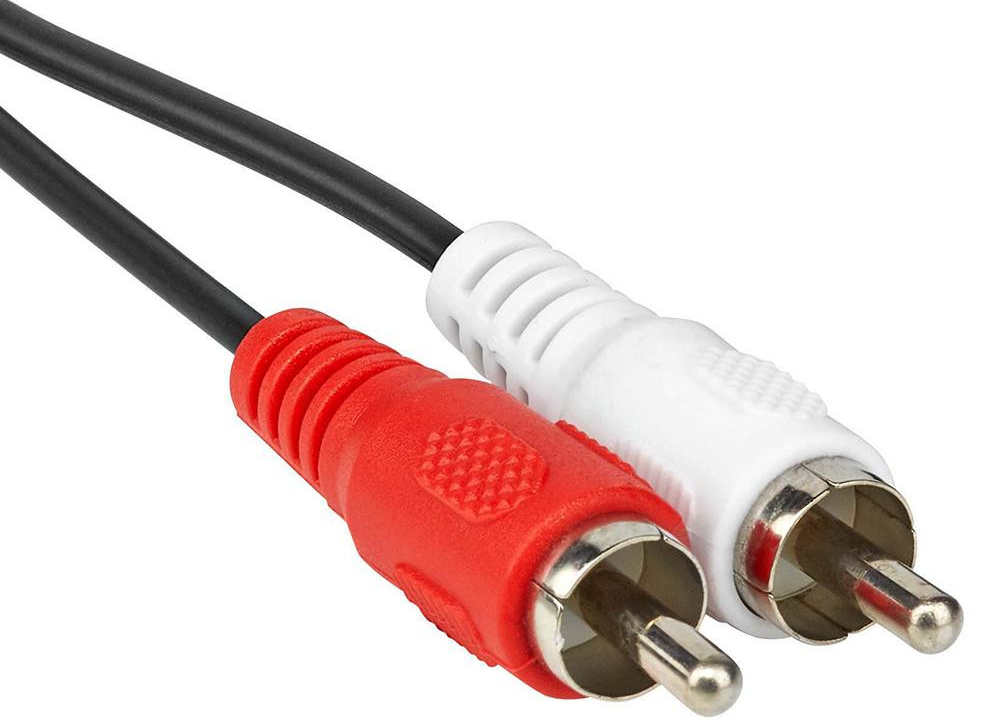

You can make your own analog audio recording with a handheld recorder, laptop or sound card directly from the mixer recording output. You need to be able to plug into your recording device a pair of male connectors type RCA, tulip or cinch (left in the image below) or a stereo male 2.5 mm mini jack (right in the image below). Cables with these connectors are available at REVEAL.
It is also possible to use RCA, tulip, cinch or mini jack to input analog audio from a device you brought, into a channel of the mixer. For all other types such as XLR, 3.5 mm jack, etc. you have to bring your own cables.
Recordings via our sound card are digital and result in an 24-bit 42.1 kHz AAC audio file. You can download this file up to one week after recording it. See below Audacity for editing and converting it into an MP3 file.
Our light setup consists of the following and is controlled by ChamSys.
| Light | Type | Number |
|---|---|---|
| DMX controller | TODO | 1 |
| moving head | TODO | 4 |
| par | Showtec LED Par 64 Q4-18 | 6 |
| spot | Briteq BT-THEATRE 50WW | 1 |
| pin spot | American DJ Pinspot LED II | 2 |
| disco ball | bidirectional rotating | 1 |
| strobe | ZD Trading IP65 LED | 2 |
| black light | Philips TL-D 36W/BLB | 2 |
| smoke machine | AGPTEK LED-500 | 1 |
| hazer | TODO | 1 |
Below is some of the audio, video and lighting software we use. All is free to use, without license fees, and runs on Windows, MacOS and Linux. If necesary we can help you use it if you have specific requirements.
| Function | Software |
|---|---|
| edit audio files | Audacity |
| record and stream | OBS Studio |
| inspect media files | BetterMediaInfo |
| edit video files | Shotcut |
| control light shosws | ChamSys MagicQ |
Read more on renting.
